T SAFE panel manufacturers & suppliers, Tricolite is India’s leading provider of customized power solutions. Established in 1959, we are located at IMT Manesar Gurgaon and Sahibabad Ghaziabad as highly reliable T SAFE switchboard manufacturers.

We are renowned for designing, manufacturing, supplying, testing & commissioning of custom-built Medium & Low Voltage Electrical Switchboards & Turnkey Solutions for 33KV/11KV/415KV. Being among the leading T SAFE panel manufacturers, our T SAFE panel boasts of superior quality, cutting-edge technology and exemplary reliability.

We are the most reliable T SAFE Panel suppliers in India. Tricolite’s T SAFE Panels are fully tested and certified according to the requirements of standard IEC: 61439-1&2:2011. They are available at Operational Voltage of 24/110/230 V AC/DC 690V AC with the Ingress Protection or IP rating of IP52 and form of separation 2b/3b/4b. The T SAFE Switchboards come with the display of Mimic Audio Visual with LED indicators/Semaphore.

As the leading T SAFE switchboard suppliers, Tricolite follows a strict Quality Assurance Plan (QAP). We procure the raw materials from the top OEMs of the power sector to ensure optimum quality in manufacturing. There are more than 200 points that we check during the process of manufacturing a switch board.

Our state-of-the-art manufacturing facility is spread over 1.5 lac sq. ft. of area which adheres to Total Quality Management (TQM) principles and critically enforces 5S system (Lean Manufacturing Methodology).

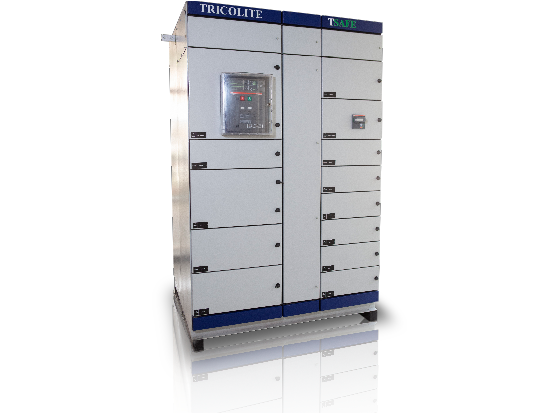

product image
Application System Control from Remote Location
Reference Standard IEC : 61439-1& 2 :2011
Operational Voltage 24/110/230 V AC/DC 690V AC
Degree Of Protection IP-52
Form of Separation 2b/3b/4b
Configuration Fixed Type
Centralised Monitoring SCADA/ETHERNET
Display Audio Visual Mimic with LED indicators/Semaphore
Designed & tested in accordance with IEC 62271-200/IS-3427.
Vacuum used as insulation and arc interruption medium.
Independent exhaust vents for all HT compartments.
Operationally safe and reliable in a wide range of ambient temperatures.
Live parts covered by automatic shutters when breaker is racked out.
Removable fuses mounted on the PT.
Apparatus customized as per requirement.
Closing spring charged by motor in less than 15 seconds
Electrical anti-pumping
Provision for manual recharging
Synchronization and fast auto-reclosure duty
