DG Synchronization

Tricolite is the leading manufacturer & supplier of advanced and efficient DG Synchronization Panel in India. Tricolite’s DG Synchronization Switchgear complies with the requirements of standard IEC: 61439-1,2009 and IS: 8623. They are available at Operational Voltage at 110/ 230V AC/DC, 415V AC and Control Voltage at 24V/ 110V/ 220V AC/DC.

The 3 Phase systems have the Ingress Protection or IP rating in indoor of IP-54 and outdoor of IP-55 with the system automation provided by DEIF Controller. Our highly efficient DG Synchronization Panel utilizes vacuum as insulation and arc interruption medium. The panels are available at width 700/ 900mm. and depth 600/ 1000/ 1200mm.

The form of separation used in the panels is of Form 2b i.e. the busbar are separated by an insulated covering or wrapping. Tricolite provides customized DG Synchronization Switchboard as per as the requirement of customers. The panels are tested heavily for safety and reliability in a wide range of ambient temperatures.

The DG Synchronization Switchboard has PLC control panels for efficient programmable sequence of operation and management. The panels are manufactured using advanced machines under the supervision of a team of highly skilled professionals. Our panel provides high level of reliable synchronization and fast auto-reclosure duty.

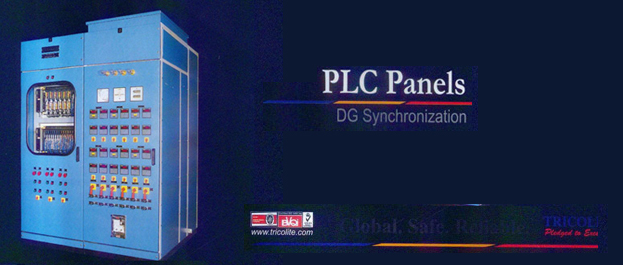

product image

  • Application
    Synchronization of DG Power
  • Reference Standard
    IEC:61439-1,2009, IS:8623
  • Operational Voltage
    110/ 230V AC/DC, 415V AC
  • Control Voltage
    24V/ 110V/ 220V AC/DC
  • Phase/ Frequency
    3 Phase/ 50 Hz
  • Degree of Protection
    IP-54/ IP-55
  • Form of Separation
  • System Automation
    DEIF Controller
  • Operational Height
    300mm Min./ 1800mm Max.
  • Max. Height of Panel
  • Width of Panel
    700/ 900mm.
  • Depth of Panel
    600/ 1000/ 1200mm.
Designed & tested in accordance with IEC 62271-200/IS-3427.
Vacuum used as insulation and arc interruption medium.
Independent exhaust vents for all HT compartments.
Operationally safe and reliable in a wide range of ambient temperatures.
Live parts covered by automatic shutters when breaker is racked out.
Removable fuses mounted on the PT.
Apparatus customized as per requirement.
Closing spring charged by motor in less than 15 seconds
Electrical anti-pumping
Provision for manual recharging
Synchronization and fast auto-reclosure duty
